Name: Full Automatic Jumbo Paper Roll Slitter 300m/min 380V
Brand: Fujian Xinyun Machinery Development Co., Ltd.
SKU: XY-XX-A
Price: 43,685.00 USD
Availability: InStock

Productdetails

Plaats van herkomst: China

Merknaam: XINYUN

Certificering: CE

Modelnummer: XY-XX-A

Betaling & het Verschepen Termijnen

Min. bestelaantal: 1 set

Prijs: 27370-60000 USD

Verpakking Details: Standaard exporteren houten pallet

Levertijd: 50-60 dagen

Betalingscondities: T/t

Levering vermogen: 600 stuks per jaar

Krijg Beste Prijs

Productdetails

Productomschrijving

Markeren:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                full automatic jumbo paper slitter, jumbo roll slitter 300m/min, 380V paper roll rewinder


Automatisch:	Volledig automatisch	Gebruik:	Jumbo Paper Roll Slitter en Rewinder
Pulpmateriaal:	Houten pulp	Verpakking:	Houten pallet
Snelheid:	280-300m/min	Garantie:	12 maanden
Mesmateriaal:	Legeringsstaal	Snijmethode:	scheermesje
Snijbreedte:	verstelbaar (minimumbreedte 200 mm)	Verwijderingskerndiameter:	3 inch
Stroomvoorziening:	380V, 50Hz, 3 fase	Snijbreedte:	1001200mm
Maat:	aangepast	Gewicht:	5000 kg

Automatisch:	Volledig automatisch
Gebruik:	Jumbo Paper Roll Slitter en Rewinder
Pulpmateriaal:	Houten pulp
Verpakking:	Houten pallet
Snelheid:	280-300m/min
Garantie:	12 maanden
Mesmateriaal:	Legeringsstaal
Snijmethode:	scheermesje
Snijbreedte:	verstelbaar (minimumbreedte 200 mm)
Verwijderingskerndiameter:	3 inch
Stroomvoorziening:	380V, 50Hz, 3 fase
Snijbreedte:	1001200mm
Maat:	aangepast
Gewicht:	5000 kg

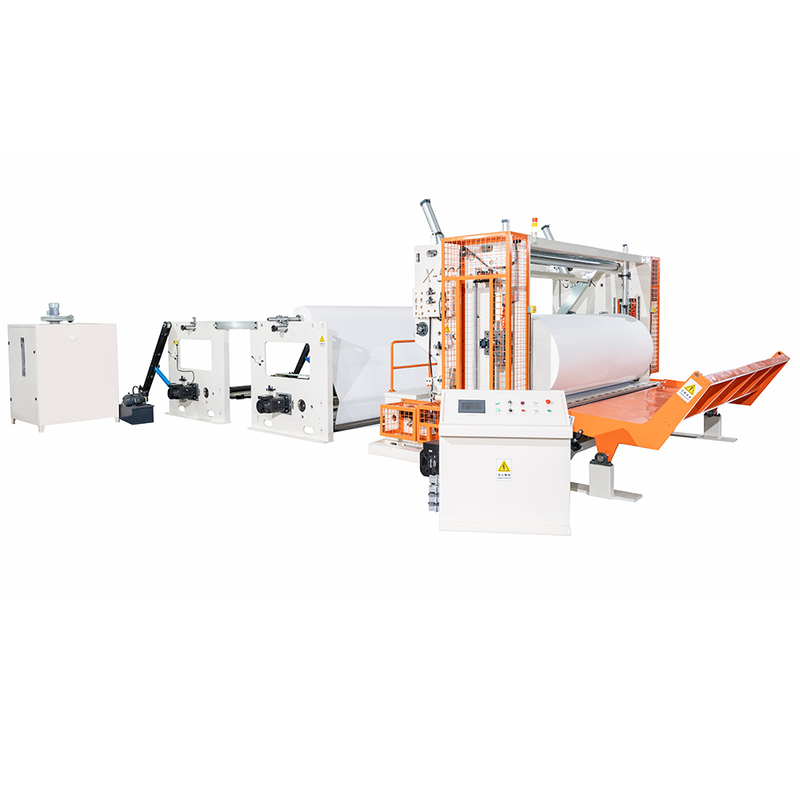

Full Automatic Jumbo Paper Roll Slitter 300m/min 380V

Big Jumbo Roll Paper Slitting Machine to Small Roll

Product Specifications

Attribute	Value
Automatic	Full automatic
Usage	Jumbo paper roll slitter and rewinder
Pulp material	Wood Pulp
Packing	Wooden pallet
Speed	280-300m/min
Warranty	12 months
Blade Material	Alloy Steel
Slitting Method	Razor Blade
Slitting width	Adjustable (minimum width as 200mm)
Rewinding Core Diameter	3 inches
Power Supply	380V, 50Hz, 3 Phase
Cutting Width	100-1200mm
Size	Custom
Weight	5000kg

Key Features

Air-shaft reeling system for easy paper pipe positioning
Steel-against-steel press-edge system with independent cylinder adjustment
Horizontal type unreeling stand with pneumatic lifter and flat belt conveyor
Individual tension adjustment unit on each jumbo roll
Front and back inching switch for safe and convenient operation
Optional tail-gluing and edge-trimming functions (available upon request)

Technical Parameters

Model	1092	1575	2000	2200	2400	2600	2800
Width of raw material	1200	1750	1950	2150	2350	2550	2750
Dia. of finished product (mm)	Φ90~1200 (the tension can be adjustable)
Dia. of raw material (mm)	Φ1200 (please specify other requirements)
Inner dia. of core of raw material	76.2 mm (please specify other requirements)
Processing capacity	280-300m/min
Reeling	Air shaft (one piece)
Unwinding stand	1-3 layer (please specify required layers)
Pneumatic system	3 air compressor, Min. pressure 5kg/cm² (prepared by clients)
Power	4.5-18 kw (380V 50HZ)
Overall size (mm) (L×W×H)	6200x2600x1800~6200x4000x1800 mm
Weight	1800~4800kg
